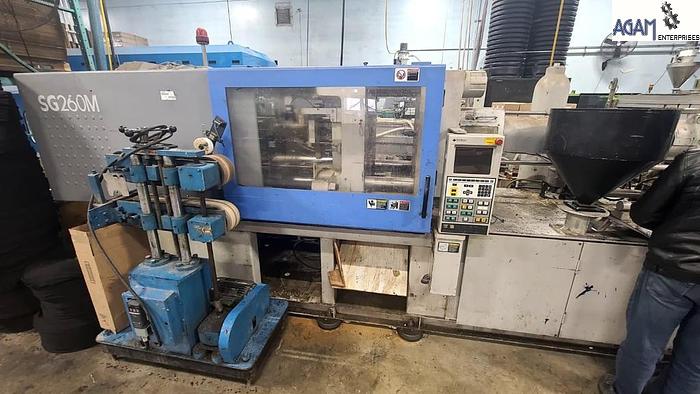

SUMITOMO SG260M INJECTION MOLDING MACHINE (CL 1250)
SUMITOMO SG260M INJECTION MOLDING MACHINE (CL 1250)
Contact us for price
Location:Navi Mumbai, India
or
Call +91-9167451313

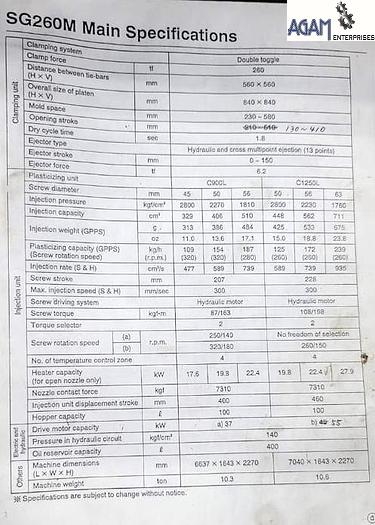

Specifications
| Manufacturer | SUMITOMO, JAPAN |
| Model | SG260M |
| Condition | Used |
| Stock Number | AGA-9517 |
| Clamping System | Double Toggle |
| Clamping Force | 260 tf |
| Distance between tie-bars (H X V) | 560 mm X 560 mm |
| Overall Size of Platen (H X V) | 840 mm X 840 mm |
| Mold Space | 230 mm - 580 mm |
| Screw Diameter | 63 mm |
| Injection Capacity | 711 cm3 |
| Injection Weight | 675 g |
| Plasticizing Capacity (Screw Rotation Speed) | 239 kg/h / 260 r.p.m |
| Screw Stroke | 228 mm |
| Max. Injection Speed | 300 mm/sec |
| Machine Weight | 10.6 ton |
