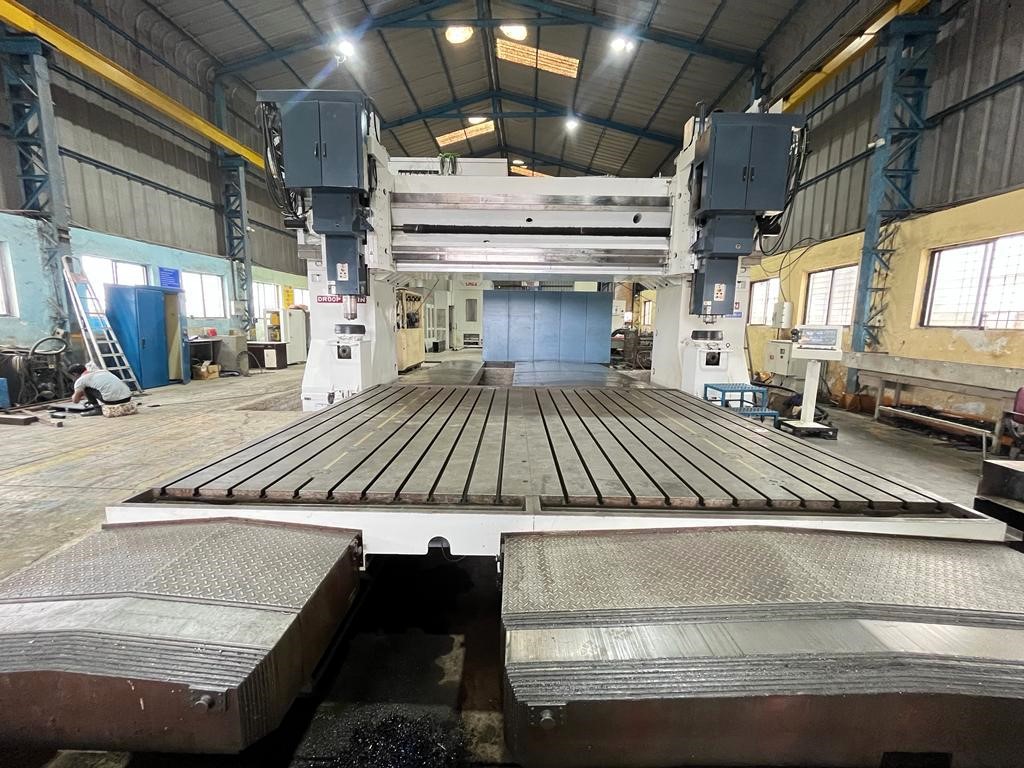

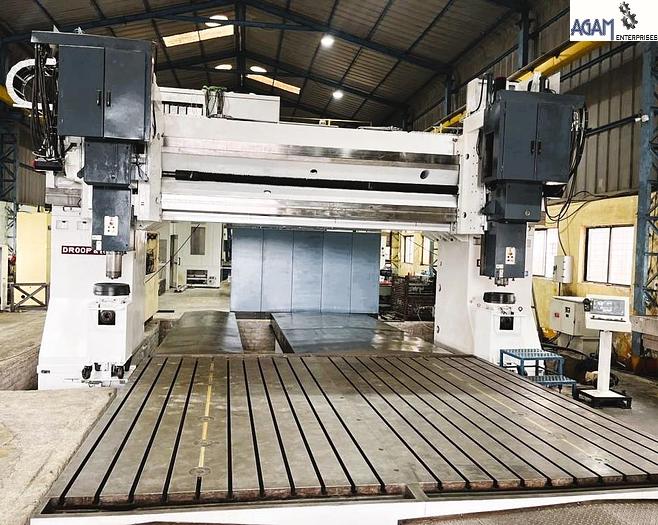

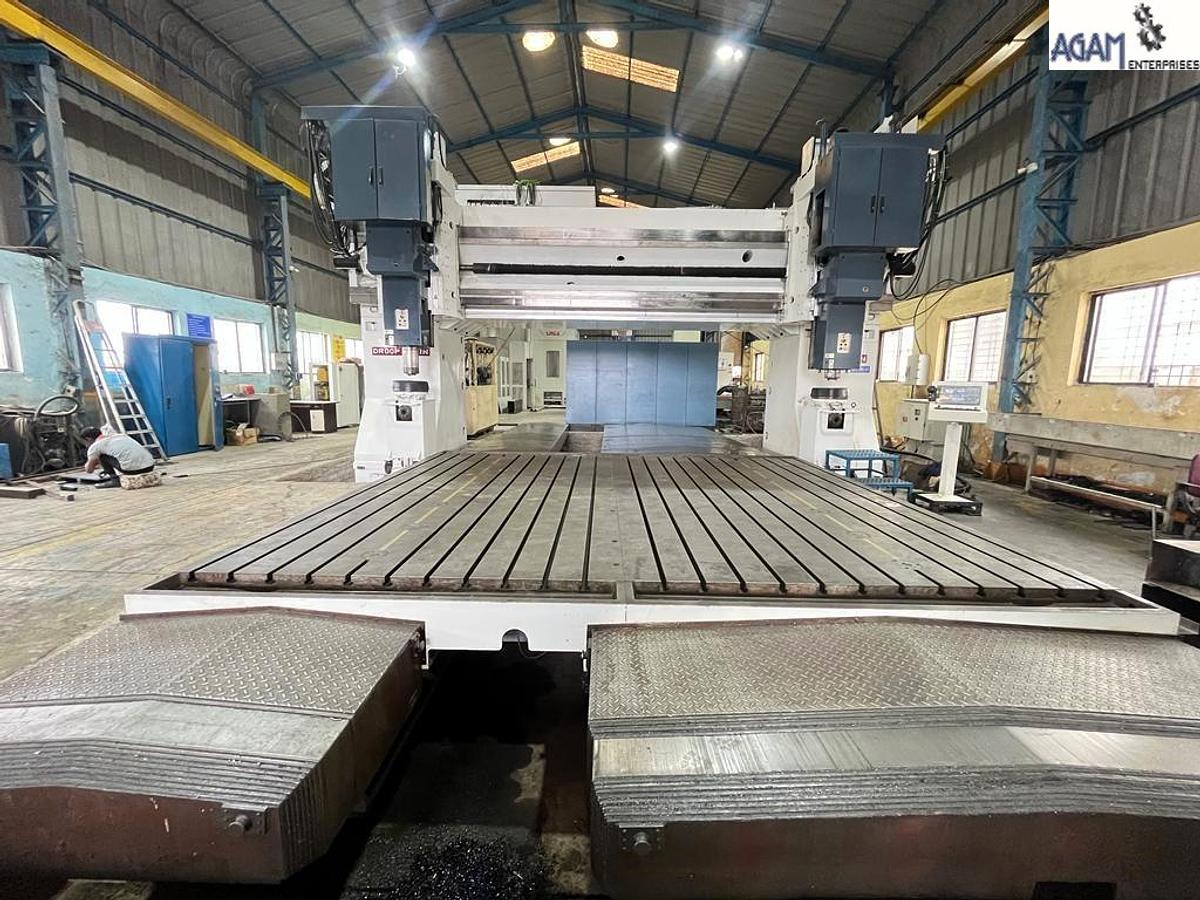

Droop & Rein Double Column Machining Center
Coveted
Droop & Rein Double Column Machining Center
Contact us for price
Location:Navi Mumbai, India
or
Call +91-9167451313
Description
Excellent Condition Machine with Double Vertical Heads And new Fanuc OiMF Plus CNC Control. Horizontal Milling Heads available.
Specifications
| Manufacturer | Droop & Rein, Germany |
| Condition | Used |
| Stock Number | AGA-9605 |
| Table Size | 5000 mm X 4000 mm |
| Vertical Height (From Table to Spindle) | 1700 mm |
| 'X' Axis Travel | 5000 mm |
| 'Y' Axis Travel | 5600 mm |
| 'Z' Axis Travel | 1000 mm |
| Feed Rate | 5 - 3000 mm/min |
| Rapid Rate | X & Y: 6000 mm/min | Z: 500 mm/min |
| Passage between columns | 5600 mm |
| Table Load Carrying Capacity | 40 tons |
| Spindle Taper | BT 50 |
| Machine Weight | 133.5 tons |
